Ergonomic in design and functionality
Modern, hygienic and practical design comes pre-assembled ready to install.
All assembled models are factory tested up to 6 bar for quality assurance.
Complete interchangeability between all bodies, spouts and pre-rinses means that product use can easily be changed on site at a later date.
Includes PosiStop protected lever and dome heads for long life and reliability for all models and Brass Back Nuts
Choice of height and bowl filler available
Built in check valve for backflow protection
Water saving options for spray gun and bowl filling spout included

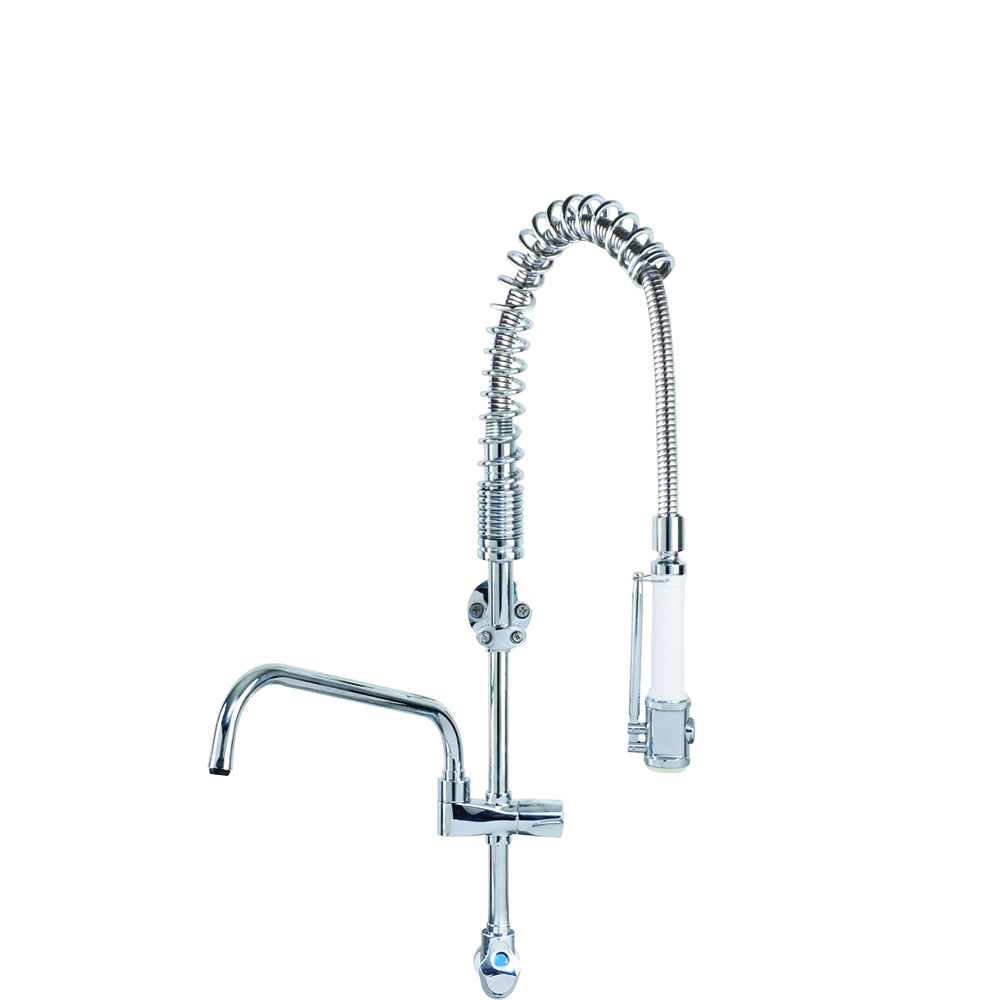

AquaTechnix TX-PR-15D-SS-BF2
AquaTechnix Pre-Rinse Spray. DOME head operated TX-PR-15D base / SUPER SHORT height / BF2 bowl filler H: 621mm
- Accreditation: Kiwa KUKreg4 1+
- Base: TX-PR-15D
- Bowl Filler: 300mm bowl filler (BF2)
- Connection(s): ½-inch
- Controls: Dome
- Height: Super Short
- Model Range: TX-15
- Mount: Panel mounted
- Pedestal: Single
- Water Feed: Single Monobloc
Connection: ½-inch BSP male thread
30mm maximum panel thickness
Hole cut out requirement 25-28mm
Height: 823mm
Product weight: 3.32kg
Recommended dynamic water pressure range: 1.5 - 5 bar. Max hot water temperature 60°C
Flow rates for all TX-PR-15 models - tested at 3 bar pressure: SPRAY GUN WATER-SAVING face plate: 4.11 l/m. SPRAY GUN STANDARD face plate: 10.84 l/m. BOWL FILLER WATER-SAVING diffuser: 3.71 l/m. BOWL FILLER STANDARD diffuser: 10.31 l/m.
2 year parts warranty
Certified to KUK Reg4 1+ by Kiwa
If this tap or combination tap is installed so that its base is no lower than the spillover level of the receiving vessel (for example, a sink or washbasin), a Type AUK3 air gap is achieved which permits installation of the tap in any premises where backflow protection up to Fluid Category 5 is required at the tap.
Additional information
| Accreditation | Kiwa KUKreg4 1+ |
|---|---|
| Base | |
| Bowl Filler | |
| Connection(s) | ½-inch |
| Controls | Dome |
| Height | Super Short |
| Model Range | |
| Mount | Panel mounted |
| Pedestal | Single |
| Water Feed | Single Monobloc |
- DOES THIS PRODUCT MEET ANY LEGISLATION/ACCREDITATION?
Yes, all AquaTechnix Pre-Rinses are WRAS approved.
- ARE THERE MATCHING PRODUCTS AVAILABLE?
Yes, we have a range of AquaTechnix taps & faucets available.
- CAN I MAKE CHANGES AT A LATER DATE? E.G. ADDING A BOWL FILLER?
Yes, there is complete interchangeability between all bodies, spouts and pre-rinses meaning that product use can easily be changed on site at a later date if required.
- WHAT IS POSISTOP?
PosiStop is a patented built-in stopping device which prevents the lever or handle from being turned or knocked too far and transferring stress to the tap valve.
- ARE AQUATECHNIX PRE-RINSES TESTED BEFORE THEY ARE SENT OUT?
Yes, all AquaTechnix Pre-Rinses are pre-assembled and factory tested u to 6 bar for quality assurance.
- CAN AN AQUATECHNIX PRE-RINSE HELP ME SAVE WATER?
Yes, screw-in water saving faceplates are included.
- ARE THERE SPARE PARTS AVAILABLE?
Yes, we have spare parts available for our AquaTechnix Pre-Rinses.
