AquaTechnix TX-PR-10L-SS-BF0

Login to see prices

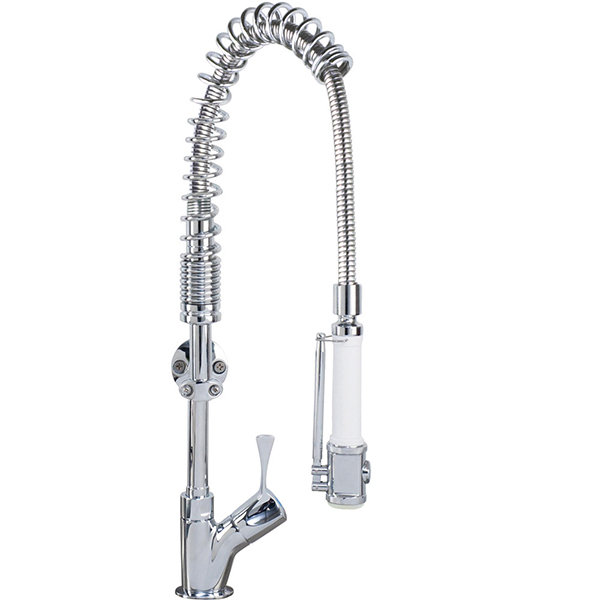

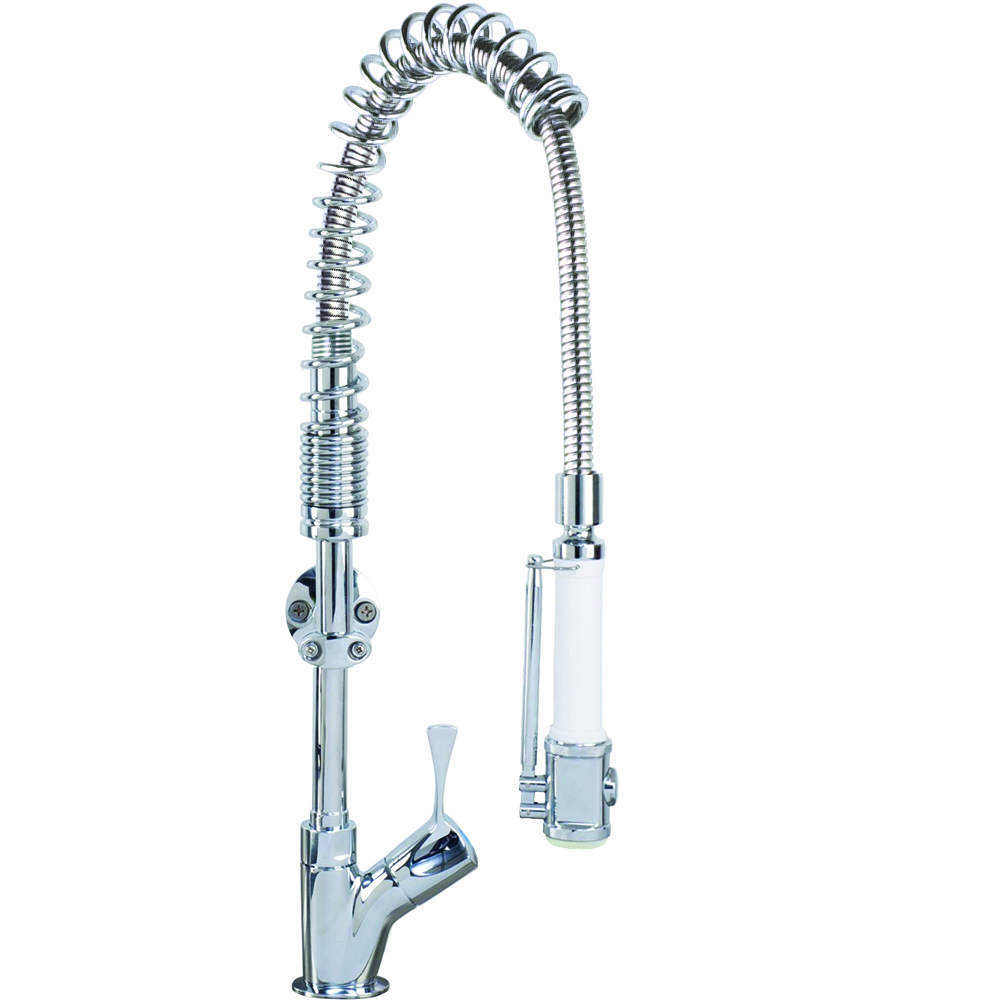

AquaTechnix Pre-Rinse Spray. LEVER operated TX-PR-10L base / SUPER SHORT height / No bowl filler H: 595mm

  • Accreditation: Kiwa KUKreg4 1+
  • Base: TX-PR-10L
  • Bowl Filler: No bowl filler (BF0)
  • Connection(s): ½-inch
  • Controls: Lever
  • Height: Super Short
  • Model Range: TX-10
  • Mount: Deck mounted
  • Pedestal: Single
  • Water Feed: Single Monobloc
  • Ergonomic in design and functionality

  • Modern, hygienic and practical design comes pre-assembled ready to install.

  • All assembled models are factory tested up to 6 bar for quality assurance.

  • Complete interchangeability between all bodies, spouts and pre-rinses means that product use can easily be changed on site at a later date.

  • Includes PosiStop protected lever and dome heads for long life and reliability for all models and Brass Back Nuts

  • Choice of height and bowl filler available

  • Built in check valve for backflow protection

  • Water saving options for spray gun and bowl filling spout available upon request

  • Connection: ½-inch BSP male thread 55mm length

  • Hole cut out requirement 25-28mm

  • Height: 595mm

  • Product weight: 2.7kg

  • Recommended dynamic water pressure range: 1.5 - 5 bar. Max hot water temperature 60°C

  • Product material: nickel plated brass, 304 stainless steel braided hose with EPDM lined inner hose

  • Flow rates tested at 3 bar dynamic pressure: SPRAY GUN WATER-SAVING face plate: 4.11 l/m. SPRAY GUN STANDARD face plate: 10.33 l/m. BOWL FILLER WATER-SAVING diffuser: 3.82 l/m. BOWL FILLER STANDARD diffuser: 10.33 l/m.

  • 2 year parts warranty

  • Certified to KUK Reg4 1+ by Kiwa

  • Certified to KUK Reg4 1+ by Kiwa

  • Built-in check valve providing catgory 3 back flow protection

Additional information

Accreditation

Kiwa KUKreg4 1+

Base

Bowl Filler

Connection(s)

½-inch

Controls

Lever

Height

Super Short

Model Range

Mount

Deck mounted

Pedestal

Single

Water Feed

Single Monobloc

  1. DOES THIS PRODUCT MEET ANY LEGISLATION/ACCREDITATION?

    Yes, all AquaTechnix Pre-Rinses are certified to KUK Reg4 1+ by Kiwa.

  2. ARE THERE MATCHING PRODUCTS AVAILABLE?

    Yes, we have a range of AquaTechnix taps & faucets available.

  3. CAN I MAKE CHANGES AT A LATER DATE? E.G. ADDING A BOWL FILLER?

    Yes, there is complete interchangeability between all bodies, spouts and pre-rinses meaning that product use can easily be changed on site at a later date if required.

  4. WHAT IS POSISTOP?

    PosiStop is a patented built-in stopping device which prevents the lever or handle from being turned or knocked too far and transferring stress to the tap valve.

  5. ARE AQUATECHNIX PRE-RINSES TESTED BEFORE THEY ARE SENT OUT?

    Yes, all AquaTechnix Pre-Rinses are pre-assembled and factory tested u to 6 bar for quality assurance.

  6. CAN AN AQUATECHNIX PRE-RINSE HELP ME SAVE WATER?

    Yes, screw-in water saving faceplates are available.

  7. WILL ADDING A BOWL FILLER EFFECT THE HEIGHT?

    Yes, adding a bowl filler will add 80mm

  8. ARE THERE SPARE PARTS AVAILABLE?

    Yes, we have spare parts available for our AquaTechnix Pre-Rinses.
