WRAS approved
Enables businesses to join the national drinking water scheme by offering easily accessible drinking water for staff, customers and the public
Stylish, curved design. Ideal for public and staff areas, kitchens, changing/wash rooms
Soft-touch press buttons with built in auto shut-off valve require no user effort
Tall swan neck bottle filler and deep bowl accommodates large water bottles
Depth of bowl reduces splashback and protects the floor from hazardous spills
Overall design function encourages reuse and recycling of drinks containers, helping to protect the environment
Chrome-plated water bottle filler is robust, corrosion resistant and easy to clean
Adjustable flow screws allow the flow rates to be quickly and easily modified (using an Allen key)
EPDM rubber o-rings
Double filter, to ensure users a thick and uniform water flow, to increase hygienic use and convenience
Supplied with flexible connection hose - 10mm bore, 150mm length, ⅜-inch F x 15mm compression fittings
Mounting bracket with integral spirit level supplied for fast and easy installation
Easy to clean - integral flush grated waste
Bowl and deck are permentally bonded to the skirt, removing the need for exposed bolts and rivets
Integrated high grade polished 304 Austenitic stainless steel splashback
Optional high density polyethylene waste bin available

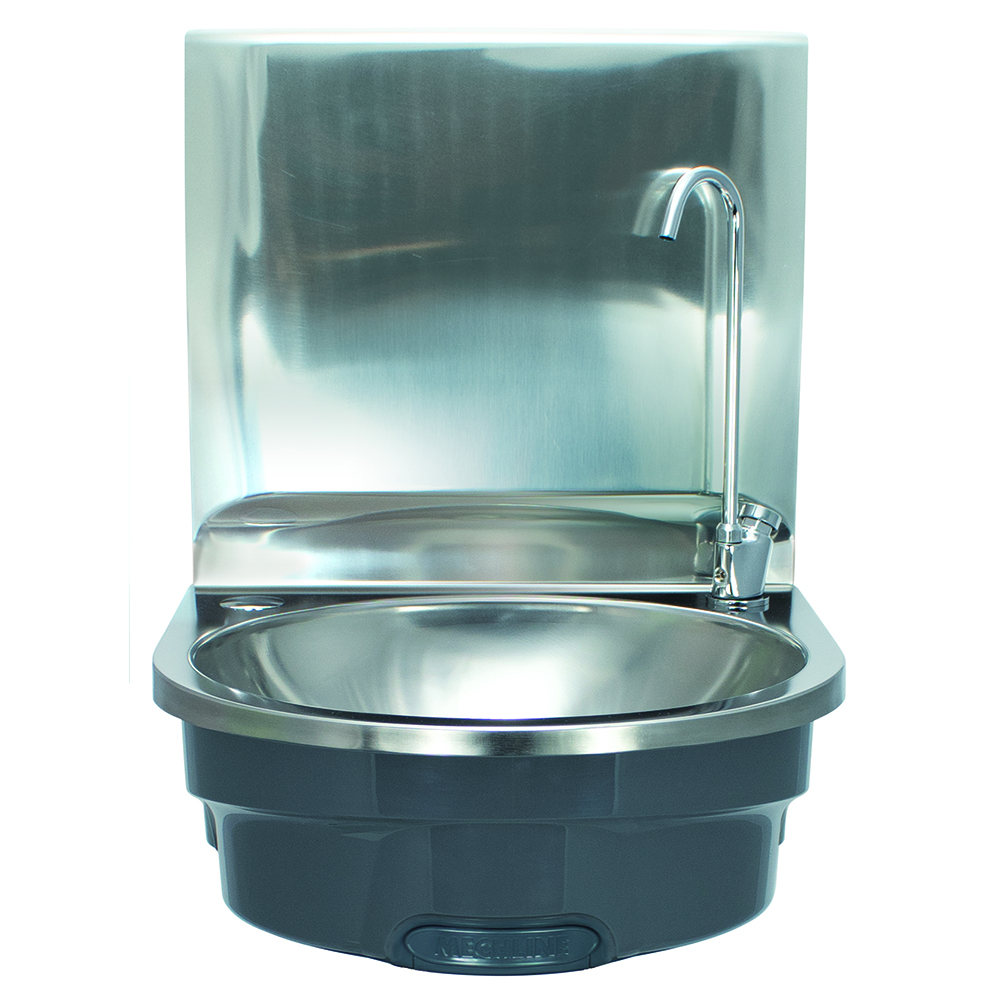

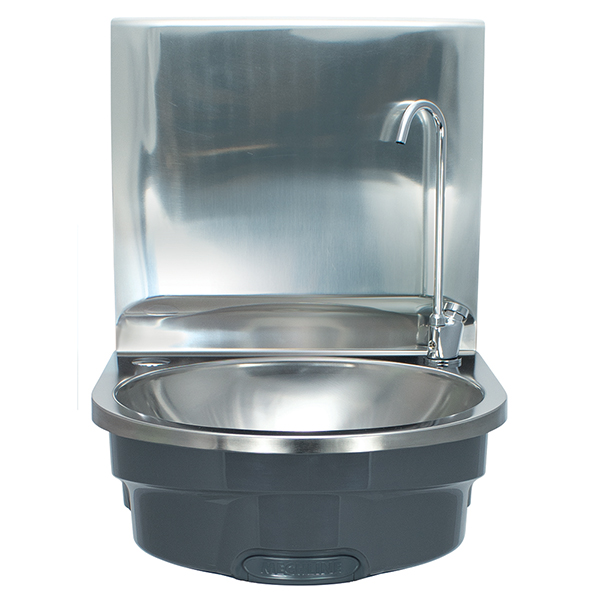

BaSix BSX-400i-WBF
Drinks Station - wall mounted, complete with BSX-400i stainless steel basin & bottle filler (includes tap hole stopper)
- Accreditation: WRAS
- Basin Range: Drinks Station
- Connection(s): Connections: ⅜-inch BSP external thread and ¼-inch BSP internal thread
- Controls: Soft-touch
Materials: Bowl & Deck: High grade polished 304 Austenitic stainless steel Skirt: High grade, high strength injection moulded ABS-Polycarbonate Bottle filler: Chrome plated
Dimensions: O/D: 400 x 360 x 510mm Bowl: 358 x 310 x 130mm deep
Connections: ⅜-inch BSP external thread
Tap hole: 25-32mm
Additional information
Accreditation | WRAS |
---|---|
Basin Range | |
Connection(s) | Connections: ⅜-inch BSP external thread and ¼-inch BSP internal thread |
Controls | Soft-touch |
- WHAT IS A DRINKS STATION?
A Drinks Station is a BaSix Hand Wash Station (BSX-300, BSX-400, BSX-400i and WS1 model) fitted with either a bottle filler tap (BSX-WBF) and/or a bubbler tap (BSX-BUB). It enables businesses to join the national drinking water scheme by offering easily accessible drinking water for staff, customers and the public.
- DOES THE DRINK STATION MEET ANY LEGISLATION/ACCREDITATION?
Yes, Drinks Stations are WRAS improved across the entire range, including the tap options
- WHERE CAN I INSTALL A DRINKS STATION?
Drinks Stations are ideal for public and staff areas, kitchens and changing/wash rooms.
- CAN IT ACCOMMODATE FOR LARGE WATER BOTTLES?
Yes, the tall swan neck bottle filler and deep bowl accommodates large water bottles.
- WILL IT HELP PROTECT THE ENVIRONMENT?
Yes, the overall design function encourages reuse and recycling of drinks containers, helping to protect the environment
- IS IT EASY TO INSTALL?
Yes, a mounting bracket with integral spirit level is supplied with every 300 and 400 basin for fast and easy installation.
