Ergonomic in design and functionality.
Modern, hygienic and practical design comes pre-assembled ready to install.
All assembled models are factory tested up to 6 bar for quality assurance.
Complete interchangeability between all bodies, spouts and pre-rinses means that product use can easily be changed on site at a later date.
Includes PosiStop protected lever and dome heads for long life and reliability for all models and Brass Back Nuts
Choice of height and bowl filler available

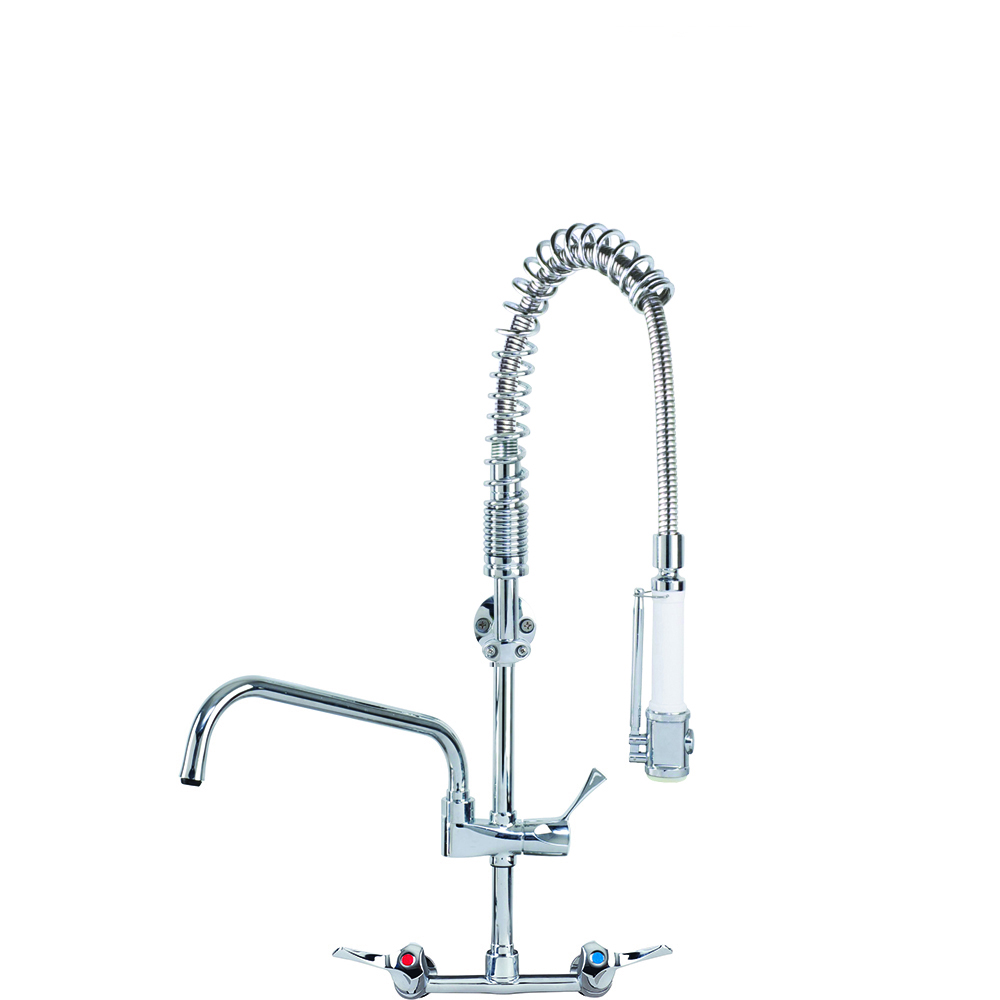

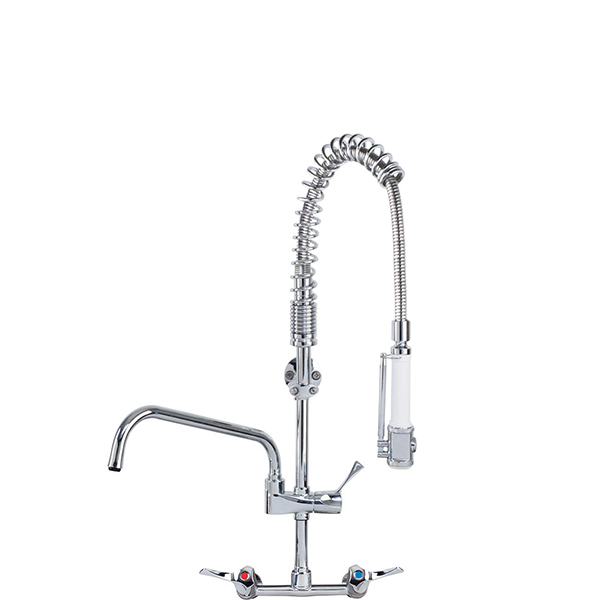

AquaTechnix TX-PR-40L-SS-BF2
AquaTechnix Pre-Rinse Spray. LEVER operated TX-PR-40L base / SUPER SHORT height / BF2 bowl filler H: 613mm
- Accreditation: Kiwa KUKreg4 1+
- Tap Hole Centres: 180mm
- Base: TX-PR-40L
- Bowl Filler: 300mm bowl filler (BF2)
- Connection(s): ½-inch
- Controls: Lever
- Height: Super Short
- Model Range: TX-40
- Mount: Panel mounted
- Pedestal: Twin
- Water Feed: Twin Monobloc
Connections: ½-inch. 30mm maximum panel thickness
Height: 613mm
Recommended static water pressure range: 1.5 - 5 bar
Flow rates for all TX-PR-40 models - tested at 3 bar pressure: SPRAY GUN WATER-SAVING face plate: 4.52 l/m. SPRAY GUN STANDARD face plate: 10.33 l/m. BOWL FILLER WATER-SAVING diffuser: 3.70 l/m. BOWL FILLER STANDARD diffuser: 9.55 l/m. Water-saving diffuser for bowl filler included.
Additional information
Accreditation | Kiwa KUKreg4 1+ |
---|---|
Tap Hole Centres | 180mm |
Base | |
Bowl Filler | |
Connection(s) | ½-inch |
Controls | Lever |
Height | Super Short |
Model Range | |
Mount | Panel mounted |
Pedestal | Twin |
Water Feed | Twin Monobloc |
- DOES THIS PRODUCT MEET ANY LEGISLATION/ACCREDITATION?
Yes, all AquaTechnix Pre-Rinses are WRAS approved.
- ARE THERE MATCHING PRODUCTS AVAILABLE?
Yes, we have a range of AquaTechnix taps & faucets available.
- CAN I MAKE CHANGES AT A LATER DATE? E.G. ADDING A BOWL FILLER?
Yes, there is complete interchangeability between all bodies, spouts and pre-rinses meaning that product use can easily be changed on site at a later date if required.
- WHAT IS POSISTOP?
PosiStop is a patented built-in stopping device which prevents the lever or handle from being turned or knocked too far and transferring stress to the tap valve.
- ARE AQUATECHNIX PRE-RINSES TESTED BEFORE THEY ARE SENT OUT?
Yes, all AquaTechnix Pre-Rinses are pre-assembled and factory tested u to 6 bar for quality assurance.
- CAN AN AQUATECHNIX PRE-RINSE HELP ME SAVE WATER?
Yes, screw-in water saving faceplates are available.
- ARE THERE SPARE PARTS AVAILABLE?
Yes, we have spare parts available for our AquaTechnix Pre-Rinses.
