AquaTechnix TX-PR-20D-ST-BF2

Login to see prices

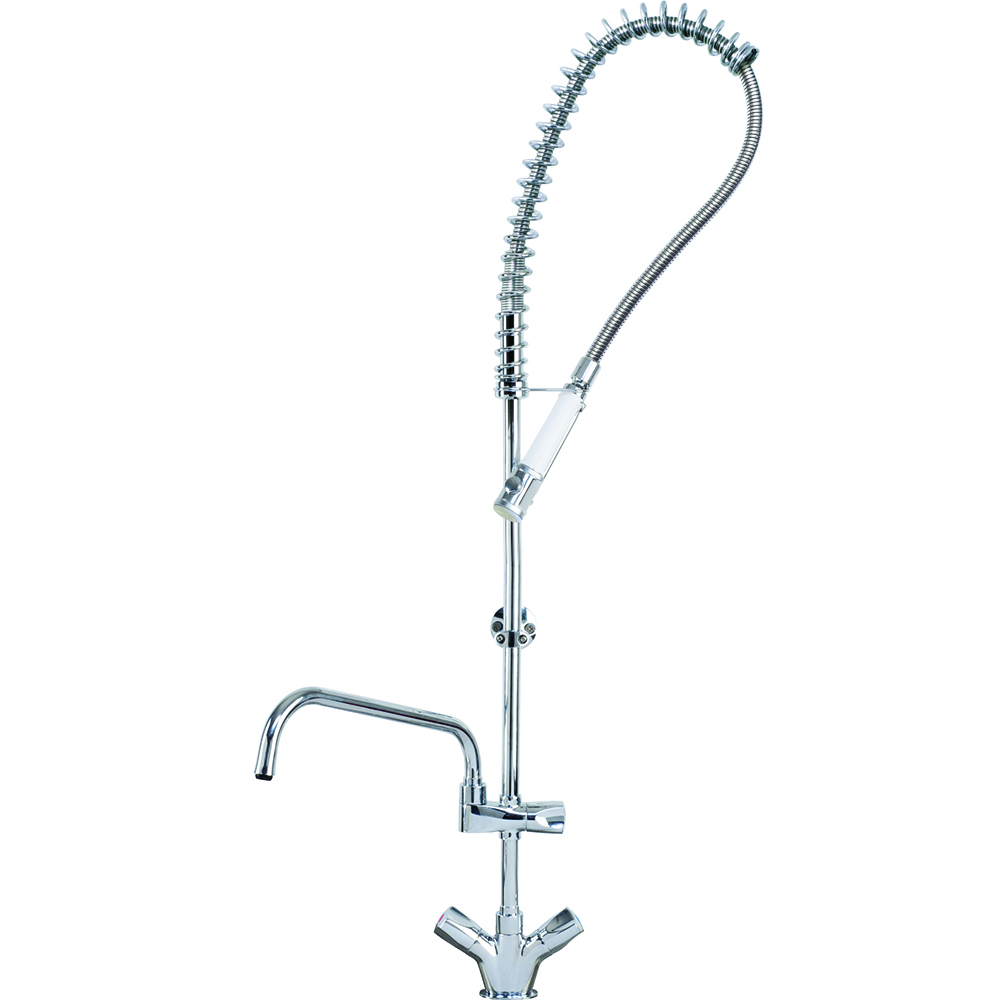

AquaTechnix Pre-Rinse Spray. DOME head operated TX-PR-20D base / STANDARD height / BF2 bowl filler H: 1204mm

  • Accreditation: Kiwa KUKreg4 1+
  • Base: TX-PR-20D
  • Bowl Filler: 300mm bowl filler (BF2)
  • Connection(s): ½-inch copper tail
  • Controls: Dome
  • Height: Standard
  • Model Range: TX-20
  • Mount: Deck mounted
  • Pedestal: Single
  • Water Feed: Twin Monobloc
  • Ergonomic in design and functionality.

  • Modern, hygienic and practical design comes pre-assembled ready to install.

  • All assembled models are factory tested up to 6 bar for quality assurance.

  • Complete interchangeability between all bodies, spouts and pre-rinses means that product use can easily be changed on site at a later date.

  • Includes PosiStop protected lever and dome heads for long life and reliability for all models and Brass Back Nuts

  • Choice of height and bowl filler available

  • Connections: ½-inch copper tail

  • Height: 1204mm

  • Recommended static water pressure range: 1.5 - 5 bar

  • Flow rates for all TX-PR-20 models - tested at 3 bar pressure: SPRAY GUN WATER-SAVING face plate: 4.65 l/m. SPRAY GUN STANDARD face plate: 7.75 l/m. BOWL FILLER WATER-SAVING diffuser: 3.56 l/m. BOWL FILLER STANDARD diffuser: 10.33 l/m. Water-saving diffuser for bowl filler included.

Additional information

Accreditation

Kiwa KUKreg4 1+

Base

Bowl Filler

Connection(s)

½-inch copper tail

Controls

Dome

Height

Standard

Model Range

Mount

Deck mounted

Pedestal

Single

Water Feed

Twin Monobloc

  1. DOES THIS PRODUCT MEET ANY LEGISLATION/ACCREDITATION?

    Yes, all AquaTechnix Pre-Rinses are WRAS approved.

  2. ARE THERE MATCHING PRODUCTS AVAILABLE?

    Yes, we have a range of AquaTechnix taps & faucets available.

  3. CAN I MAKE CHANGES AT A LATER DATE? E.G. ADDING A BOWL FILLER?

    Yes, there is complete interchangeability between all bodies, spouts and pre-rinses meaning that product use can easily be changed on site at a later date if required.

  4. WHAT IS POSISTOP?

    PosiStop is a patented built-in stopping device which prevents the lever or handle from being turned or knocked too far and transferring stress to the tap valve.

  5. ARE AQUATECHNIX PRE-RINSES TESTED BEFORE THEY ARE SENT OUT?

    Yes, all AquaTechnix Pre-Rinses are pre-assembled and factory tested u to 6 bar for quality assurance.

  6. CAN AN AQUATECHNIX PRE-RINSE HELP ME SAVE WATER?

    Yes, screw-in water saving faceplates are available.

  7. ARE THERE SPARE PARTS AVAILABLE?

    Yes, we have spare parts available for our AquaTechnix Pre-Rinses.
