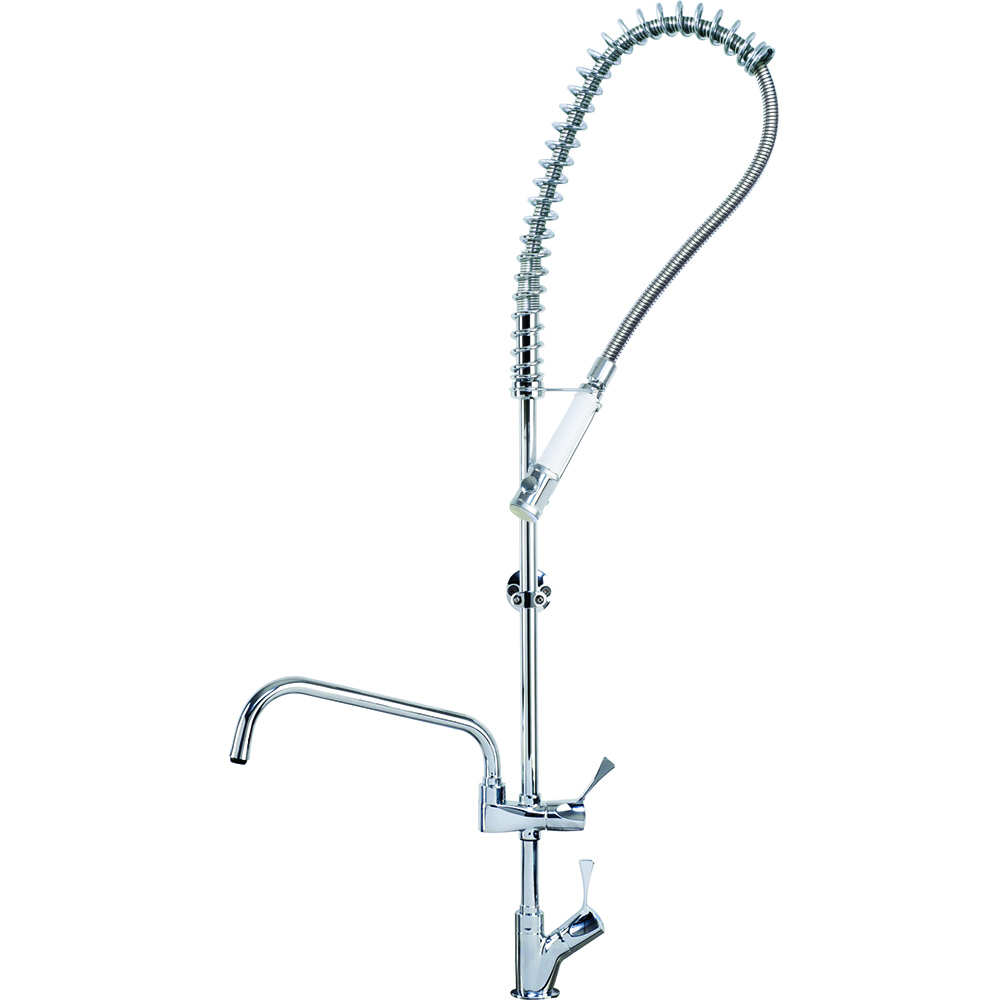

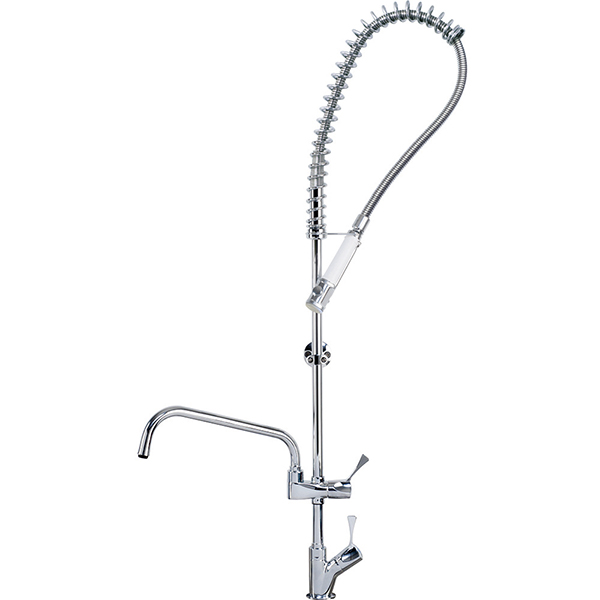

AquaTechnix TX-PR-10L-ST-BF2

AquaTechnix Pre-Rinse Spray. LEVER operated TX-PR-10L base / STANDARD height / BF2 bowl filler H: 1204mm

  • Model range TX-10
  • Base TX-PR-10L
  • Height Standard
  • Bowl filler 300mm bowl filler (BF2)
  • Pedestal Single
  • Mount Deck mounted
  • Water feed Single Monobloc
  • Controls Lever
  • Connections 1/2-inch
  • Accreditation WRAS

Features & Benefits

  • Ergonomic in design and functionality.
  • Modern, hygienic and practical design comes pre-assembled ready to install.
  • All assembled models are factory tested up to 6 bar for quality assurance.
  • Complete interchangeability between all bodies, spouts and pre-rinses means that product use can easily be changed on site at a later date.
  • Heavy-duty construction incorporating high quality tested and proven components for commercial use.
  • Choice of height and bowl filler available.

Technical Info

  • Connection: 1/2-inch
  • Height: 1204mm
  • Recommended static water pressure range: 1.5 - 5 bar
  • Flow rates for all TX-PR-10 models - tested at 3 bar pressure: SPRAY GUN WATER-SAVING face plate: 4.11 l/m. SPRAY GUN STANDARD face plate: 10.33 l/m. BOWL FILLER WATER-SAVING diffuser: 3.82 l/m. BOWL FILLER STANDARD diffuser: 10.33 l/m. Water-saving diffuser for bowl filler available on request.

Faq's

  1. DOES THIS PRODUCT MEET ANY LEGISLATION/ACCREDITATION?
    Yes, all AquaTechnix Pre-Rinses are WRAS approved.
  2. ARE THERE MATCHING PRODUCTS AVAILABLE?
    Yes, we have a range of AquaTechnix taps & faucets available.
  3. CAN I MAKE CHANGES AT A LATER DATE? E.G. ADDING A BOWL FILLER?
    Yes, there is complete interchangeability between all bodies, spouts and pre-rinses meaning that product use can easily be changed on site at a later date if required.
  4. WHAT IS POSISTOP?
    PosiStop is a patented built-in stopping device which prevents the lever or handle from being turned or knocked too far and transferring stress to the tap valve.
  5. ARE AQUATECHNIX PRE-RINSES TESTED BEFORE THEY ARE SENT OUT?
    Yes, all AquaTechnix Pre-Rinses are pre-assembled and factory tested u to 6 bar for quality assurance.
  6. CAN AN AQUATECHNIX PRE-RINSE HELP ME SAVE WATER?
    Yes, screw-in water saving faceplates are available.
  7. ARE THERE SPARE PARTS AVAILABLE?
    Yes, we have spare parts available for our AquaTechnix Pre-Rinses.
