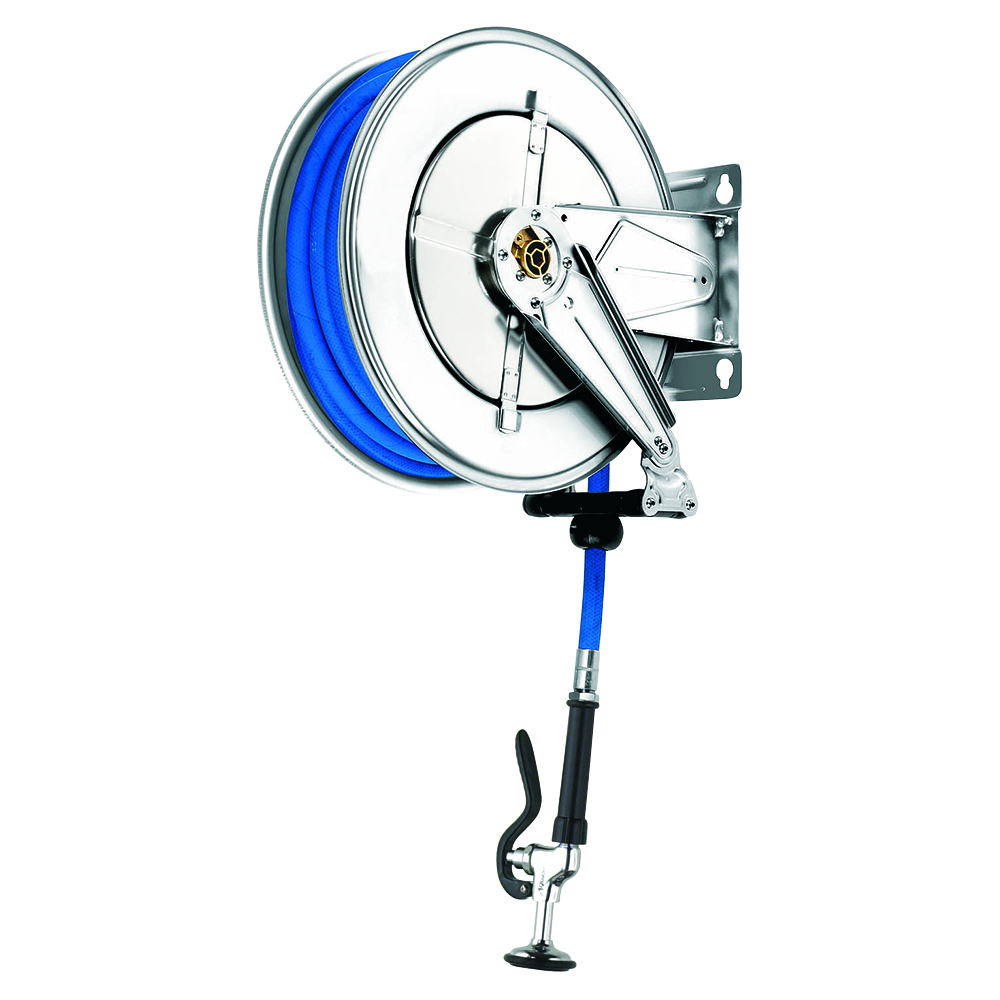

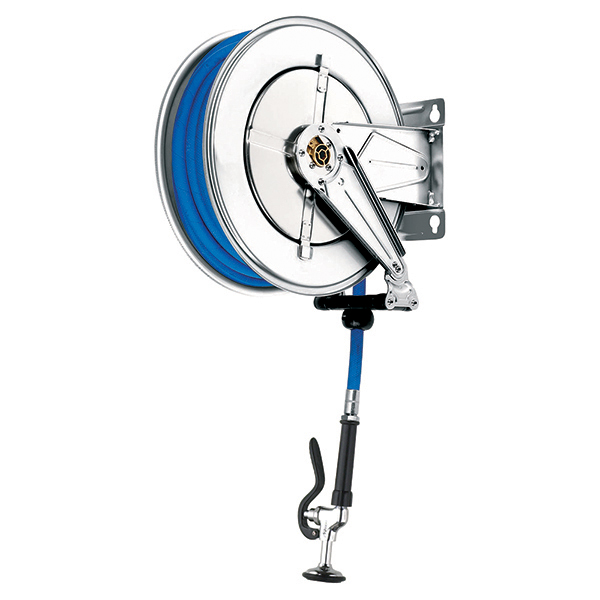

AquaJet MSRK15/SSG

Wash Down Hose Reel with Standard Rose Head Gun

Features & Benefits

  • Spring loaded latch mechanisms allow complete positive hose retractions every time.
  • Ground edge drive springs minimise fractures found in conventional slit edge springs.
  • Full flow shaft and swivel ensure no water pressure drop or restriction of flow.
  • De-clutching arbour eliminates the possibility of spring damage due to reverse winding of the reel spool.
  • Hose changes are made easier on open reels as the reel does not need to be pre-tensioned.
  • Metal reels are either steel powder coated or stainless steel (304) for maximum working life.
  • A variety of mounting options available.
  • Material: Stainless steel (304).
  • NB: Installation must comply with local water authority codes. Isolation controls and check valves not included.
  • NB: Minimum 3-bar pressure is recommended to provide reasonable washing performance.

Technical Info

  • Water Pressure: 3 - 20 bar (300psi).
  • Hose length: 15m (50ft).
  • Hose dia: 12mm (1/2-inch).
  • Inlet: 1/2-inch BSP, female connection.
  • Flow rate: 8.15 lpm

Faq's

  1. WHAT MATERIAL IS USED FOR THE REEL?
    Stainless Steel (304) open-reel design.
  2. WHAT IS THE WATER PRESSURE?
    3 - 20 bar (300psi) NOTE: Minimum 3-bar pressure is recommended to provide reasonable washing performance.
  3. WHAT IS THE HOSE LENGTH?
    15m (50ft).
  4. WHAT IS THE HOSE INSIDE DIAMETER?
    12mm (1/2-inch).
  5. WHAT IS THE INLET CONNECTION?
    1/2-inch BSP, female connection.
  6. WHAT IS THE WEIGHT OF THE PRODUCT?
    23kg.
  7. ARE THERE SPARE PARTS AVAILABLE?
    Yes.
