Spring loaded latch mechanisms allow complete positive hose retractions every time.
Ground edge drive springs minimise fractures found in conventional slit edge springs.
Full flow shaft and swivel ensure no water pressure drop or restriction of flow.
De-clutching arbour eliminates the possibility of spring damage due to reverse winding of the reel spool.
Hose changes are made easier on open reels as the reel does not need to be pre-tensioned.
Metal reels are either steel powder coated or stainless steel (304) for maximum working life.
A variety of mounting options available.
Material: Stainless steel (304).
NB: Installation must comply with local water authority codes. Isolation controls and check valves not included.
NB: Minimum 3-bar pressure is recommended to provide reasonable washing performance.

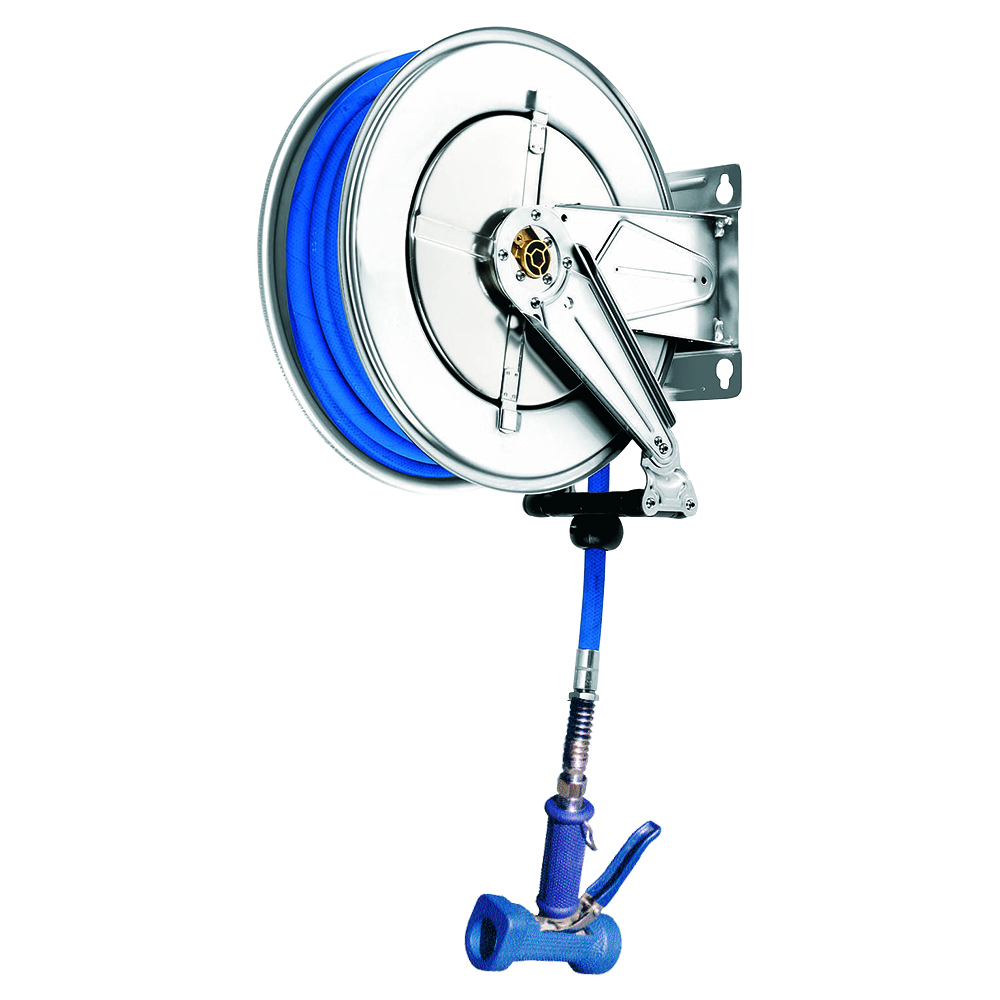

Wash Down Hose Reel with Heavy-Duty Adjustable Head Gun
Water Pressure: 3 - 20 bar (300psi).
Hose length: 15m (50ft).
Hose dia: 12mm (½-inch).
Inlet: ½-inch BSP, female connection.
- WHAT MATERIAL IS USED FOR THE REEL?
Stainless Steel (304) open-reel design.
- WHAT IS THE WATER PRESSURE?
3 - 20 bar (300psi) NOTE: Minimum 3-bar pressure is recommended to provide reasonable washing performance.
- WHAT IS THE HOSE LENGTH?
- WHAT IS THE HOSE INSIDE DIAMETER?
- WHAT IS THE INLET CONNECTION?
½-inch BSP, female connection.
- WHAT IS THE WEIGHT OF THE PRODUCT?
- ARE THERE SPARE PARTS AVAILABLE?
