BaSix BSX-400-WBF

Login to see prices

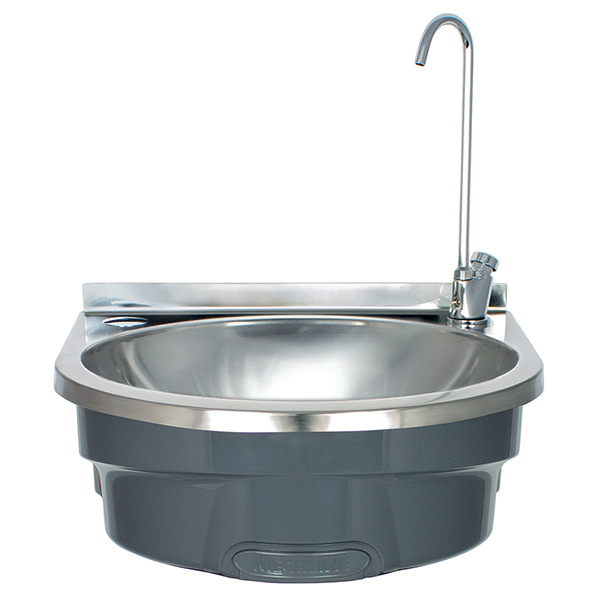

Drinks Station - wall mounted, complete with BSX-400 stainless steel basin & bottle filler (includes tap hole stopper)

  • Accreditation: WRAS
  • Basin Range: Drinks Station
  • Connection(s): Connections: ⅜-inch BSP external thread and ¼-inch BSP internal thread
  • Controls: Soft-touch
  • WRAS approved

  • Enables businesses to join the national drinking water scheme by offering easily accessible drinking water for staff, customers and the public

  • Stylish, curved design. Ideal for public and staff areas, kitchens, changing/wash rooms

  • Soft-touch press buttons with built in auto shut-off valve require no user effort

  • Tall swan neck bottle filler and deep bowl accommodates large water bottles

  • Depth of bowl reduces splashback and protects the floor from hazardous spills

  • Overall design function encourages reuse and recycling of drinks containers, helping to protect the environment

  • Chrome-plated water bottle filler is robust, corrosion resistant and easy to clean

  • Adjustable flow screws allow the flow rates to be quickly and easily modified (using an Allen key)

  • EPDM rubber o-rings

  • Double filter, to ensure users a thick and uniform water flow, to increase hygienic use and convenience

  • Supplied with flexible connection hose - 10mm bore, 150mm length, ⅜-inch F x 15mm compression fittings

  • Mounting bracket with integral spirit level supplied for fast and easy installation

  • Easy to clean - integral flush grated waste

  • Bowl and deck are permentally bonded to the skirt, removing the need for exposed bolts and rivets

  • Optional high density polyethylene waste bin available

  • Materials: Bowl & Deck: High grade polished 304 Austenitic stainless steel Skirt: High grade, high strength injection moulded ABS-Polycarbonate Bottle filler: Chrome plated

  • Dimensions: O/D: 400 x 360 x 160mm Bowl: 358 x 310 x 130mm deep

  • Connections: ⅜-inch BSP external thread

  • Tap hole: 25-32mm

Additional information

Accreditation

WRAS

Basin Range

Connection(s)

Connections: ⅜-inch BSP external thread and ¼-inch BSP internal thread

Controls

Soft-touch

  1. WHAT IS A DRINKS STATION?

    A Drinks Station is a BaSix Hand Wash Station (BSX-300, BSX-400, BSX-400i and WS1 model) fitted with either a bottle filler tap (BSX-WBF) and/or a bubbler tap (BSX-BUB). It enables businesses to join the national drinking water scheme by offering easily accessible drinking water for staff, customers and the public.

  2. DOES THE DRINK STATION MEET ANY LEGISLATION/ACCREDITATION?

    Yes, Drinks Stations are WRAS improved across the entire range, including the tap options

  3. WHERE CAN I INSTALL A DRINKS STATION?

    Drinks Stations are ideal for public and staff areas, kitchens and changing/wash rooms.

  4. CAN IT ACCOMMODATE FOR LARGE WATER BOTTLES?

    Yes, the tall swan neck bottle filler and deep bowl accommodates large water bottles.

  5. WILL IT HELP PROTECT THE ENVIRONMENT?

    Yes, the overall design function encourages reuse and recycling of drinks containers, helping to protect the environment

  6. IS IT EASY TO INSTALL?

    Yes, a mounting bracket with integral spirit level is supplied with every 300 and 400 basin for fast and easy installation.
