AquaTechnix TX-W-408DF

Login to see prices

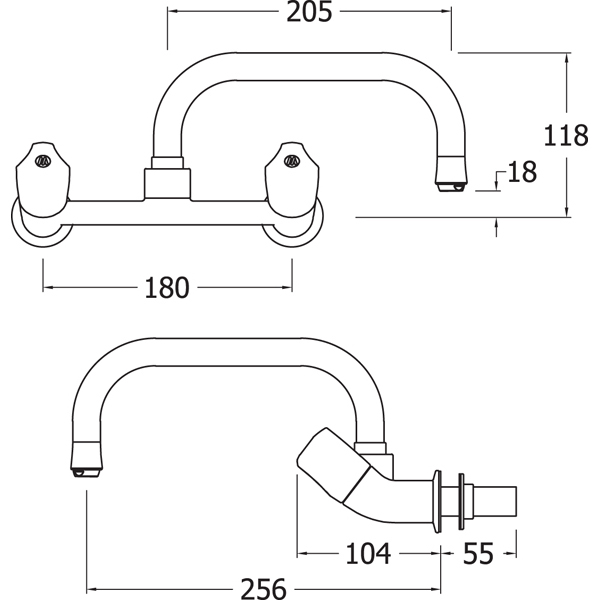

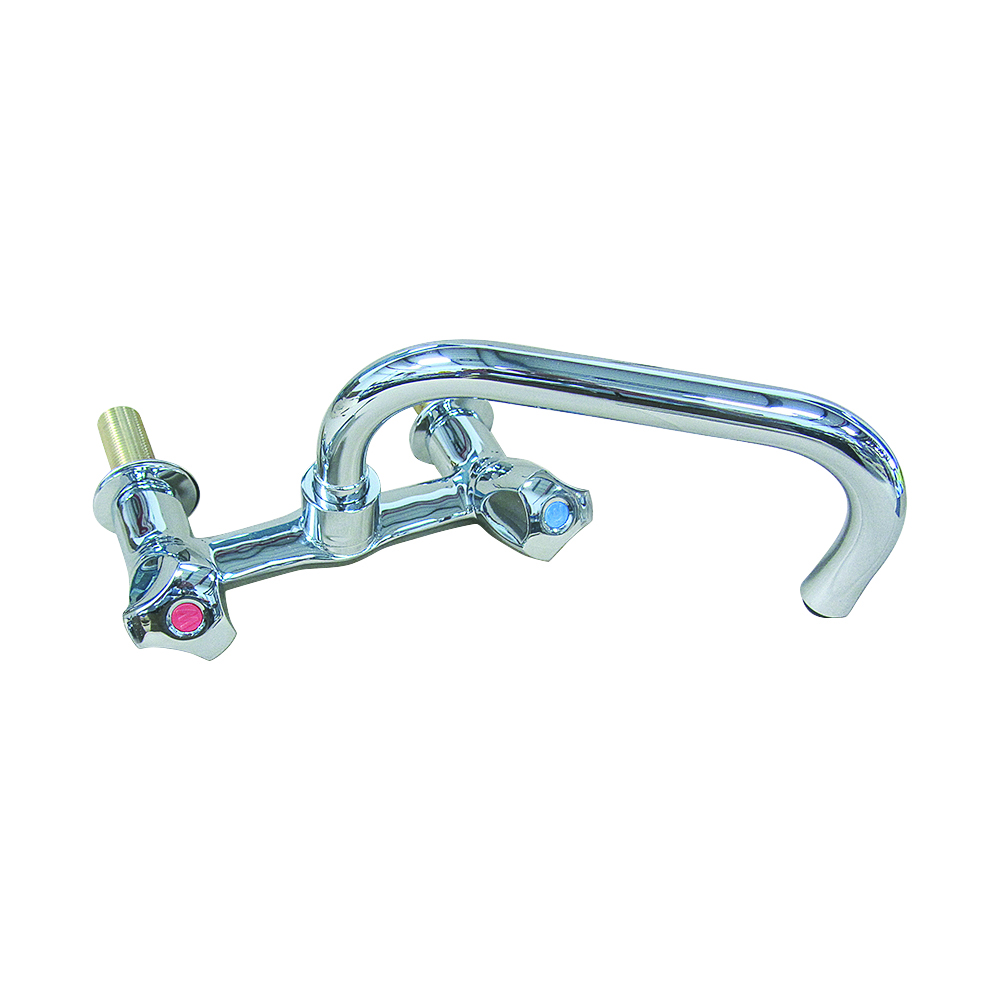

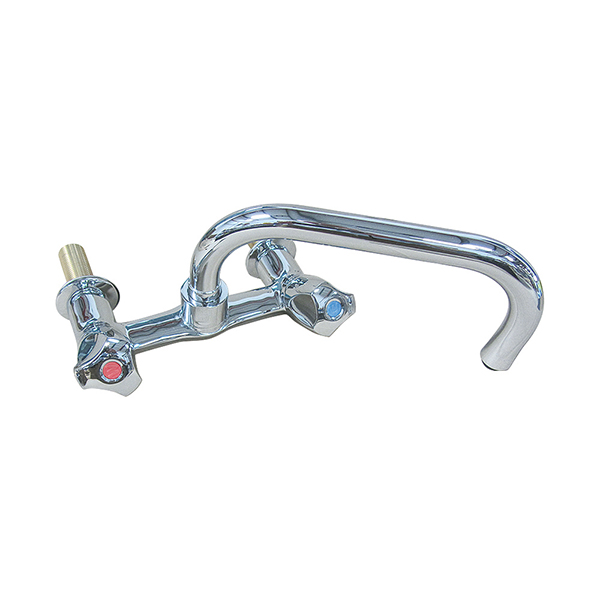

AquaTechnix DOME head operated faucet TX-W-40 base with 200mm low profile swivel spout. H 118mm

  • Accreditation: Kiwa KUKreg4 1+
  • Tap Hole Centres: 180mm
  • Base: TX-W-40
  • Connection(s): ½-inch
  • Controls: Dome
  • Model Range: TX-40
  • Mount: Panel mounted
  • Pedestal: Twin Hole
  • Spout: 200mm low profile
  • Tap Type: Twin Mixer
  • Water Feed: Twin
  • Ergonomic in design and functionality.

  • Modern, hygienic and practical design comes pre-assembled ready to install.

  • All assembled models are factory tested up to 6 bar for quality assurance.

  • Complete interchangeability between all bodies, spouts and pre-rinses means that product use can easily be changed on site at a later date.

  • Includes PosiStop protected lever and dome heads for long life and reliability for all models

  • Connections: ½-inch. 30mm maximum wall/panel thickness

  • Height: 118mm

  • Recommended static water pressure range: 1.5 - 5 bar

  • Flow rates for all TX-W-40 models - tested at 3 bar pressure: Fitted with WATER-SAVING diffuser: 3.70 l/m (INCLUDED) Fitted with STANDARD diffuser: 9.55 l/m

Additional information

Accreditation

Kiwa KUKreg4 1+

Tap Hole Centres

180mm

Base

Connection(s)

½-inch

Controls

Dome

Model Range

Mount

Panel mounted

Pedestal

Twin Hole

Spout

200mm low profile

Tap Type

Water Feed

Twin

  1. DO AQUATECHNIX TAPS MEET ANY LEGISLATION/ACCREDITATION?

    Yes, all AquaTechnix taps are WRAS approved.

  2. ARE THERE MATCHING PRODUCTS AVAILABLE?

    Yes, we have a range of AquaTechnix Pre-Rinse Sprays available.

  3. WHAT IS POSISTOP?

    PosiStop is a patented built-in stopping device which prevents the lever or handle from being turned or knocked too far and transferring stress to the tap valve.
