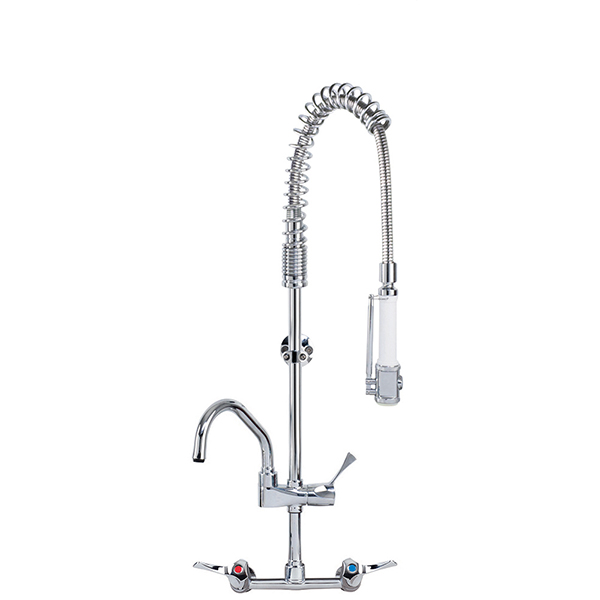

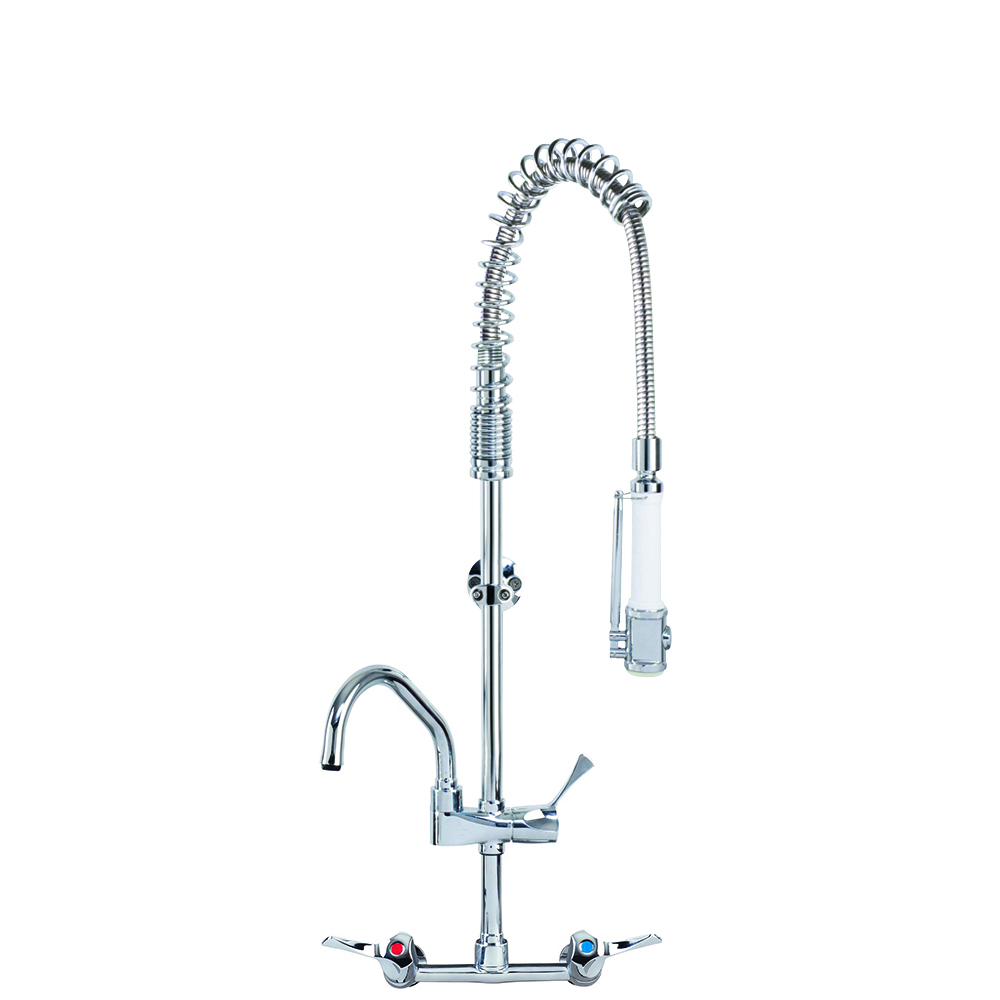

AquaTechnix TX-PR-40L-SH-BF1-E (150mm centres)

Login to see prices

AquaTechnix Pre-Rinse Spray (150mm centre). LEVER operated TX-PR-40L base / SHORT height / BF1 bowl filler H: 815mm

  • Accreditation: Kiwa KUKreg4 1+
  • Tap Hole Centres: 150mm
  • Base: TX-PR-40L
  • Bowl Filler: 150mm bowl filler (BF1)
  • Controls: Lever
  • Height: Short
  • Mount: Panel mounted
  • Pedestal: Twin
  • Water Feed: Twin
  • Connection(s): ½-inch
  • Ergonomic in design and functionality

  • Modern, hygienic and practical design comes pre-assembled ready to install

  • All assembled models are factory tested up to 6 bar for quality assurance

  • Complete interchangeability between all bodies, spouts and pre-rinses means that product use can easily be changed on site at a later date

  • Includes PosiStop protected lever and dome heads for long life and reliability for all models and Brass Back Nuts

  • Choice of height and bowl filler available

  • Connections: ½-inch. 30mm maximum panel thickness

  • Height: 815mm

  • Recommended static water pressure range: 1.5 - 5 bar

  • Flow rates for all TX-PR-40 models - tested at 3 bar pressure: SPRAY GUN WATER-SAVING face plate: 4.52 l/m. SPRAY GUN STANDARD face plate: 10.33 l/m. BOWL FILLER WATER-SAVING diffuser: 3.70 l/m. BOWL FILLER STANDARD diffuser: 9.55 l/m. Water-saving diffuser for bowl filler included.

Additional information

Accreditation

Kiwa KUKreg4 1+

Tap Hole Centres

150mm

Base

Bowl Filler

Controls

Lever

Height

Short

Mount

Panel mounted

Pedestal

Twin

Water Feed

Twin

Connection(s)

½-inch

  1. DOES THIS PRODUCT MEET ANY LEGISLATION/ACCREDITATION?

    Yes, all AquaTechnix Pre-Rinses have KUKreg4 1+ certification

  2. ARE THERE MATCHING PRODUCTS AVAILABLE?

    Yes, we have a range of AquaTechnix taps & faucets available

  3. CAN I MAKE CHANGES AT A LATER DATE? E.G. ADDING A BOWL FILLER?

    Yes, there is complete interchangeability between all bodies, spouts and pre-rinses meaning that product use can easily be changed on site at a later date if required

  4. WHAT IS POSISTOP?

    PosiStop is a patented built-in stopping device which prevents the lever or handle from being turned or knocked too far and transferring stress to the tap valve

  5. ARE AQUATECHNIX PRE-RINSES TESTED BEFORE THEY ARE SENT OUT?

    Yes, all AquaTechnix Pre-Rinses are pre-assembled and factory tested u to 6 bar for quality assurance

  6. CAN AN AQUATECHNIX PRE-RINSE HELP ME SAVE WATER?

    Yes, screw-in water saving faceplates are available

  7. ARE THERE SPARE PARTS AVAILABLE?

    Yes, we have spare parts available for our AquaTechnix Pre-Rinses.
