Ergonomic in design and functionality.
Modern, hygienic and practical design comes pre-assembled ready to install.
All assembled models are factory tested up to 6 bar for quality assurance.
Complete interchangeability between all bodies, spouts and pre-rinses means that product use can easily be changed on site at a later date.
Includes PosiStop protected lever and dome heads for long life and reliability for all models and Brass Back Nuts
Choice of height and bowl filler available

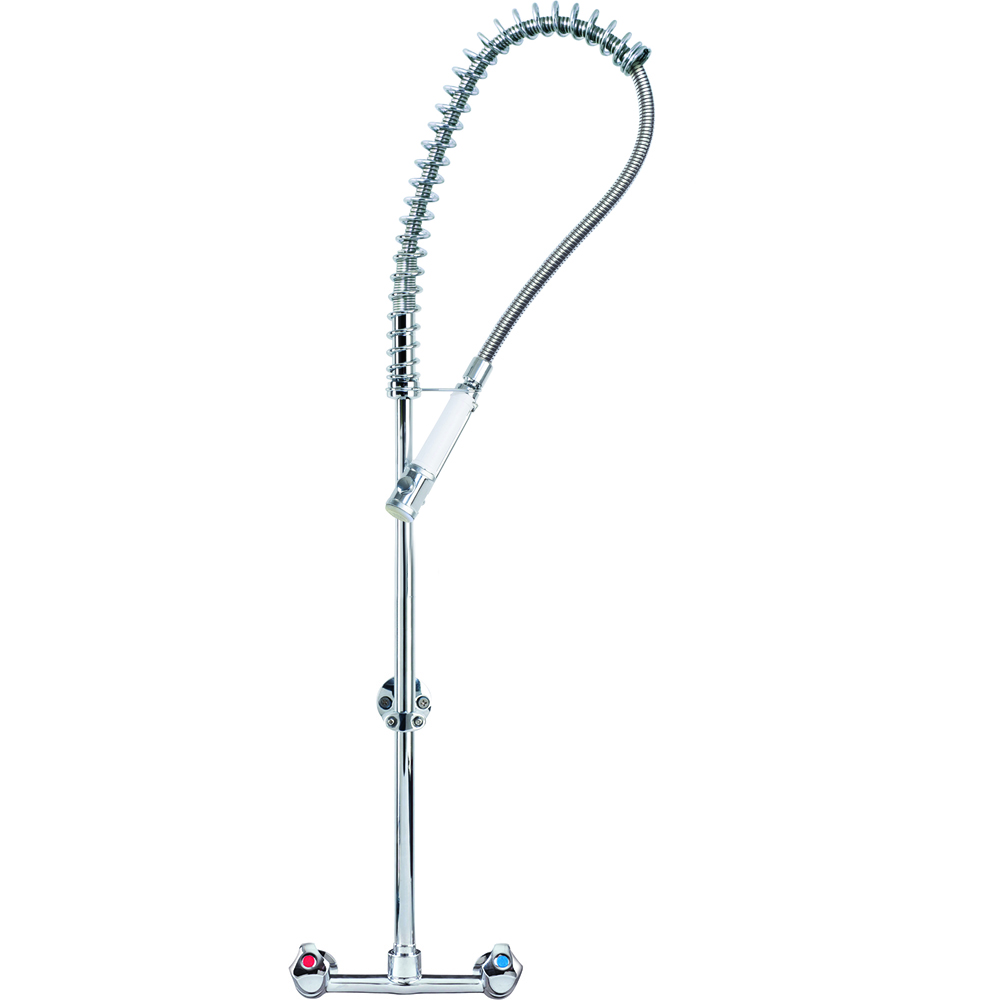

AquaTechnix TX-PR-40D-ST-BF0
AquaTechnix Pre-Rinse Spray. DOME head operated TX-PR-40D base / STANDARD height / No bowl filler H: 1010mm
- Accreditation: Kiwa KUKreg4 1+
- Tap Hole Centres: 180mm
- Base: TX-PR-40D
- Bowl Filler: No bowl filler (BF0)
- Connection(s): ½-inch
- Controls: Dome
- Height: Standard
- Model Range: TX-40
- Mount: Panel mounted
- Pedestal: Twin
- Water Feed: Twin Monobloc
Connection: ½-inch BSP male thread 180mm centres
30mm maximum panel thickness
Hole cut out requirement 25-28mm x2 180mm centres
Height: 1010mm
Product weight: 4.3kg
Recommended dynamic water pressure range: 1.5 - 5 bar. Max hot water temperature 60°C
Flow rates for all TX-PR-40 models - tested at 3 bar pressure: SPRAY GUN WATER-SAVING face plate: 4.52 l/m. SPRAY GUN STANDARD face plate: 10.33 l/m. BOWL FILLER WATER-SAVING diffuser: 3.70 l/m. BOWL FILLER STANDARD diffuser: 9.55 l/m. Water-saving diffuser for bowl filler included.
2 year parts warranty
Certified to KUK Reg4 1+ by Kiwa
If this tap or combination tap is installed so that its base is no lower than the spillover level of the receiving vessel (for example, a sink or washbasin), a Type AUK3 air gap is achieved which permits installation of the tap in any premises where backflow protection up to Fluid Category 5 is required at the tap.
Additional information
| Accreditation | Kiwa KUKreg4 1+ |
|---|---|
| Tap Hole Centres | 180mm |
| Base | |
| Bowl Filler | |
| Connection(s) | ½-inch |
| Controls | Dome |
| Height | Standard |
| Model Range | |
| Mount | Panel mounted |
| Pedestal | Twin |
| Water Feed | Twin Monobloc |
- DOES THIS PRODUCT MEET ANY LEGISLATION/ACCREDITATION?
Yes, all AquaTechnix Pre-Rinses are certified to KUK Reg4 1+ by Kiwa.
- ARE THERE MATCHING PRODUCTS AVAILABLE?
Yes, we have a range of AquaTechnix taps & faucets available.
- CAN I MAKE CHANGES AT A LATER DATE? E.G. ADDING A BOWL FILLER?
Yes, there is complete interchangeability between all bodies, spouts and pre-rinses meaning that product use can easily be changed on site at a later date if required.
- WHAT IS POSISTOP?
PosiStop is a patented built-in stopping device which prevents the lever or handle from being turned or knocked too far and transferring stress to the tap valve.
- ARE AQUATECHNIX PRE-RINSES TESTED BEFORE THEY ARE SENT OUT?
Yes, all AquaTechnix Pre-Rinses are pre-assembled and factory tested u to 6 bar for quality assurance.
- CAN AN AQUATECHNIX PRE-RINSE HELP ME SAVE WATER?
Yes, screw-in water saving faceplates are available.
- WILL ADDING A BOWL FILLER EFFECT THE HEIGHT?
Yes, adding a bowl filler will add 132mm
- ARE THERE SPARE PARTS AVAILABLE?
Yes, we have spare parts available for our AquaTechnix Pre-Rinses.
