Ergonomic in design and functionality
Modern, hygienic and practical design comes pre-assembled ready to install
All assembled models are factory tested up to 6 bar for quality assurance
Complete interchangeability between all bodies, spouts and pre-rinses means that product use can easily be changed on site at a later date
Includes PosiStop protected lever and dome heads for long life and reliability for all models and Brass Back Nuts
Choice of height and bowl filler available

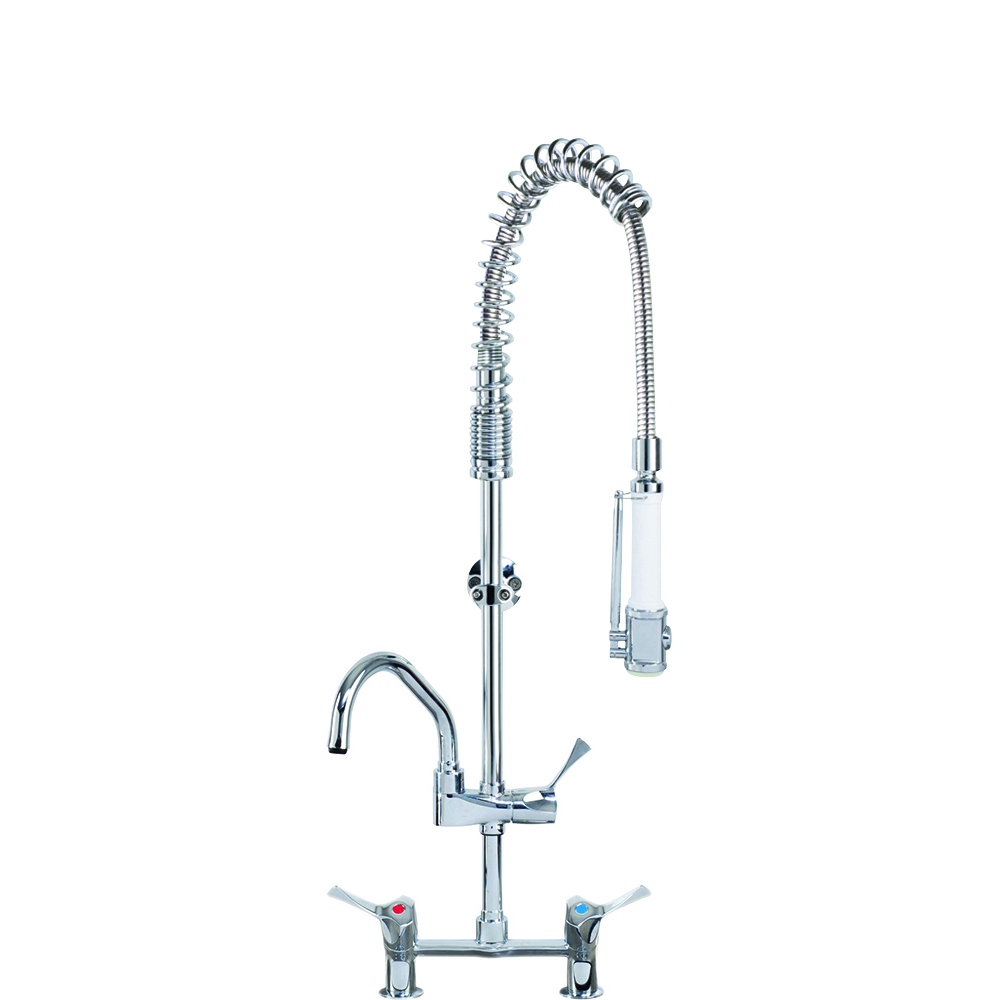

AquaTechnix TX-PR-30L-SH-BF1-E (150mm centres)
AquaTechnix Pre-Rinse Spray (150mm centre). LEVER operated TX-PR-30L base / SHORT height / BF1 bowl filler H: 860mm
- Accreditation: Kiwa KUKreg4 1+
- Tap Hole Centres: 150mm
- Base: TX-PR-30L
- Bowl Filler: 150mm bowl filler (BF1)
- Controls: Lever
- Height: Short
- Mount: Deck mounted
- Pedestal: Twin
- Water Feed: Twin
- Connection(s): ½-inch
Connections: ½-inch BSP 55mm length
Hole cut out requirement 25-28mm x2 150mm centres
Height: 860mm
Product weight: 4.4kg
Recommended dynamic water pressure range: 1.5 - 5 bar. Max hot water temperature 60°C
Flow rates for all TX-PR-30 models - tested at 3 bar dynamic pressure: SPRAY GUN WATER-SAVING face plate: 4.52 l/m. SPRAY GUN STANDARD face plate: 7.84 l/m. BOWL FILLER WATER-SAVING diffuser: 3.74 l/m. BOWL FILLER STANDARD diffuser: 9.33 l/m. Water-saving diffuser for bowl filler included.
2 year parts warranty
Certified to KUK Reg4 1+ by Kiwa
If this tap or combination tap is installed so that its base is no lower than the spillover level of the receiving vessel (for example, a sink or washbasin), a Type AUK3 air gap is achieved which permits installation of the tap in any premises where backflow protection up to Fluid Category 5 is required at the tap
Requires a balanced supply of hot and cold water with a difference no greater than 1 bar at the inlets
Additional information
| Accreditation | Kiwa KUKreg4 1+ |
|---|---|
| Tap Hole Centres | 150mm |
| Base | |
| Bowl Filler | |
| Controls | Lever |
| Height | Short |
| Mount | Deck mounted |
| Pedestal | Twin |
| Water Feed | Twin |
| Connection(s) | ½-inch |
- DOES THIS PRODUCT MEET ANY LEGISLATION/ACCREDITATION?
Yes, all AquaTechnix Pre-Rinses have KUKreg4 1+ certification
- ARE THERE MATCHING PRODUCTS AVAILABLE?
Yes, we have a range of AquaTechnix taps & faucets available
- CAN I MAKE CHANGES AT A LATER DATE? E.G. ADDING A BOWL FILLER?
Yes, there is complete interchangeability between all bodies, spouts and pre-rinses meaning that product use can easily be changed on site at a later date if required
- WHAT IS POSISTOP?
PosiStop is a patented built-in stopping device which prevents the lever or handle from being turned or knocked too far and transferring stress to the tap valve
- ARE AQUATECHNIX PRE-RINSES TESTED BEFORE THEY ARE SENT OUT?
Yes, all AquaTechnix Pre-Rinses are pre-assembled and factory tested u to 6 bar for quality assurance
- CAN AN AQUATECHNIX PRE-RINSE HELP ME SAVE WATER?
Yes, screw-in water saving faceplates are available
- ARE THERE SPARE PARTS AVAILABLE?
Yes, we have spare parts available for our AquaTechnix Pre-Rinses.
